Choosing the Right Wire Gauge for LED Strip Lights: 18 AWG vs. 22 AWG Explained

Introduction

Selecting the appropriate wire gauge is a critical step in ensuring the performance, safety, and longevity of LED strip lights. The American Wire Gauge (AWG) system standardizes wire sizes, with lower numbers indicating thicker wires. This article compares 18 AWG and 22 AWG wires to guide users, whether sourcing from a LED strip lights supplier or a custom LED strip lights manufacturer, in choosing the right wire for their LED light strips. By addressing key factors and common questions, we aim to help users achieve optimal lighting results.

Understanding Wire Gauges: 18 AWG vs. 22 AWG

Wire gauge determines a wire’s ability to carry current and resist voltage drop, both crucial for LED Strip Lights. Here’s a breakdown:

• 18 AWG Wire: Approximately 1.02 mm in diameter with a cross-sectional area of 0.823 mm², this thicker wire handles higher currents and has lower resistance, making it suitable for demanding applications.
• 22 AWG Wire: With a diameter of about 0.644 mm and a cross-sectional area of 0.326 mm², this thinner wire is ideal for lower-current, shorter runs.

Key differences include diameter, current capacity, and resistance, with 18 AWG offering better performance for higher power or longer runs of LED strip lights.

Key Factors in Choosing Wire Gauge for LED Strip Lights

Several factors influence wire gauge selection for LED light strips:

• Current Carrying Capacity: Determines how much current a wire can safely handle without overheating. Thicker wires support higher currents.
• Voltage Drop: In DC circuits, voltage decreases over distance due to wire resistance, affecting LED brightness and color consistency.
• Power Requirements: The power consumption of LED Strip Lights dictates the current, influencing wire choice.
• Length of Run: Longer wire runs increase resistance, necessitating thicker wires to minimize voltage drop.

Comparing 18 AWG and 22 AWG for LED Strip Lights

Current Handling

• 18 AWG: Can handle up to 10-15 amps in low-voltage DC applications, suitable for high-power LED strip lights bulk supply.
• 22 AWG: Typically supports 5-7 amps, ideal for low-power setups.

Voltage Drop

For a 5-meter run with 2 amps at 12V:

• 22 AWG: Resistance is 0.05296 Ω/m, so total resistance is 5 × 0.05296 = 0.2648 Ω. Voltage drop = 2 × 0.2648 = 0.5296V (~4.4% of 12V).
• 18 AWG: Resistance is 0.02095 Ω/m, so total resistance is 5 × 0.02095 = 0.10475 Ω. Voltage drop = 2 × 0.10475 = 0.2095V (~1.7% of 12V).

For a 10-meter run:

• 22 AWG: Voltage drop = 2 × (10 × 0.05296) = 1.0592V (~8.8% of 12V), potentially causing dimming.
• 18 AWG: Voltage drop = 2 × (10 × 0.02095) = 0.419V (~3.5% of 12V), maintaining better performance.

18 AWG wires significantly reduce voltage drop compared to 22 AWG, ensuring consistent brightness for LED strip lights over longer distances.

Suitability for Applications

• Short Runs: 22 AWG is sufficient for short runs (e.g., under-cabinet lighting) with low current, often used in wholesale LED strip lights for compact setups.
• Long Runs: 18 AWG is better for longer runs or high-power applications (e.g., architectural lighting), common in LED strip lights bulk supply projects.
• Cost and Availability: 18 AWG is slightly more expensive but widely available from LED strip lights suppliers. The cost difference is often offset by improved performance.

Addressing Common User Questions

• What is the maximum current each wire gauge can handle?
  For LED Strip Lights, 18 AWG typically handles up to 10-15 amps, while 22 AWG supports 5-7 amps in low-voltage setups. Check with your LED strip lights supplier for specific recommendations.
• How does wire gauge affect voltage drop and LED brightness?
  Thinner wires like 22 AWG have higher resistance, leading to greater voltage drop, which can dim LED light strips or alter colors. Thicker 18 AWG wires minimize this issue.
• Are there safety risks with choosing the wrong wire gauge?
  Using a wire too thin for the current can cause overheating, posing fire risks or damaging insulation. Always match the gauge to the power needs of your LED Strip Lights.
• When should I choose 18 AWG over 22 AWG, or vice versa?
  Choose 18 AWG for longer runs or high-power LED light strips; opt for 22 AWG for short, low-power installations to save on costs.

Real-World Examples

• Example 1: Short, Low-Power Setup
  A 2-meter LED strip light under kitchen cabinets, drawing 1.5 amps at 12V, uses 22 AWG wire. Voltage drop is minimal (~0.16V), ensuring bright, consistent lighting.
• Example 2: Long, High-Power Installation
  A 10-meter LED strip light for room perimeter lighting, drawing 4 amps at 12V, requires 18 AWG to keep voltage drop low (~0.84V), maintaining performance.
• Example 3: Risks of Inadequate Gauge
  Using 22 AWG for a 15-meter, 5-amp LED strip light results in a ~2V drop, causing dimming and potential overheating, highlighting the need for 18 AWG.

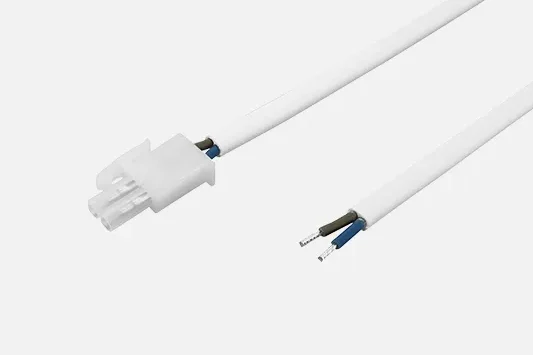

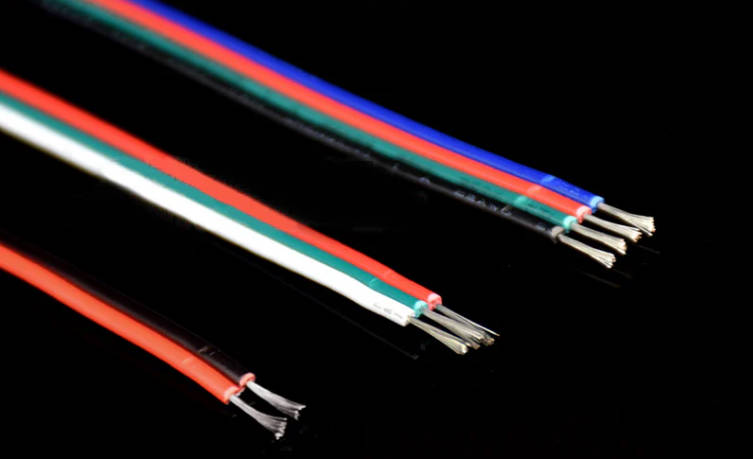

Visual Comparison: 18 AWG vs. 22 AWG

Conclusion

Choosing between 18 AWG and 22 AWG for LED strip lights depends on your project’s power requirements and wire length. 18 AWG is ideal for longer runs or high-power applications, while 22 AWG suits short, low-power setups. By understanding these factors, users can ensure optimal performance and safety. Whether sourcing from a LED strip lights supplier, LED strip lights bulk supply, or a custom LED strip lights manufacturer, selecting the right wire gauge enhances the reliability of your wholesale LED strip lights installations.
