When setting up LED strip lights, one of the most critical yet often overlooked aspects is selecting the right cables. LED Strip Light Cables are the lifeline between your power source and the lights themselves, ensuring efficient power delivery and safe operation. Choosing cables with the correct voltage rating and current-carrying capacity is essential to prevent issues like overheating, voltage drops, or even damage to your LED strips. In this comprehensive guide, we’ll walk you through everything you need to know about matching LED Strip Light Cables to your setup, including practical examples, key considerations, and tips for using LED cable extensions and LED strip extension wires.

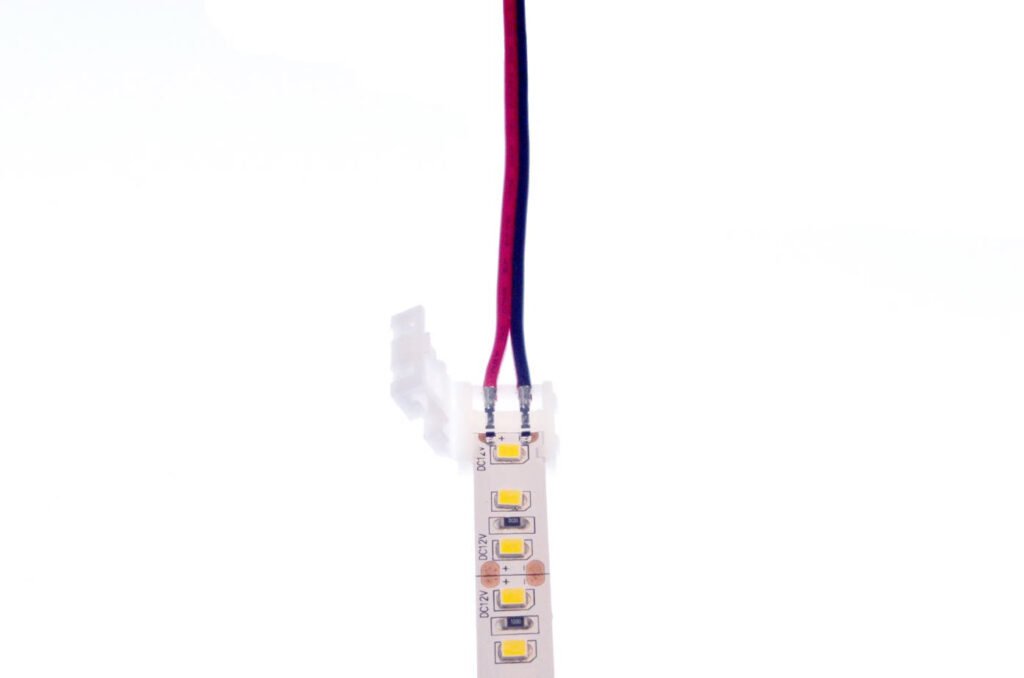

Understanding Voltage Ratings for LED Strip Light Cables
The voltage rating of a cable tells you the maximum voltage it can safely handle without risking insulation failure or electrical hazards. Most LED strip lights operate at either 12V or 24V, though some specialized setups might differ. To ensure safety and performance, the cable you choose must have a voltage rating that matches or exceeds the voltage of your LED strip.
For instance, if you’re working with a 12V LED strip, you’ll need LED Strip Light Cables rated for at least 12V. Cables rated for higher voltages, such as 24V or even 300V, are perfectly safe to use as well—over-specification in this case won’t cause problems. However, using a cable rated below the strip’s voltage (e.g., a 10V-rated cable for a 12V strip) could lead to insulation breakdown, posing a fire risk or damaging your setup.
Key Tip: Always check the voltage specification on your LED strip’s packaging or datasheet before selecting your LED Strip Light Cables. This simple step can save you from costly mistakes.
Calculating Capacity: Current-Carrying Capacity of Cables
Beyond voltage, the current-carrying capacity—or ampacity—of your LED Strip Light Cables is just as crucial. Ampacity refers to the maximum amount of electrical current a cable can handle without overheating. This depends largely on the wire gauge (measured in AWG, or American Wire Gauge) and the material, typically copper. Thicker cables (with lower AWG numbers) can carry more current safely.
To determine the right cable capacity, you’ll need to calculate the current draw of your LED strip. The formula is straightforward:
Current (Amps) = Power (Watts) ÷ Voltage (Volts)
Let’s break this down with an example. Suppose you have a 12V LED strip that consumes 30W. The current draw would be:
- Current = 30W ÷ 12V = 2.5A
With a current draw of 2.5A, you’ll need a cable with an ampacity exceeding 2.5A. Referring to the table below, a 20 AWG cable (rated for 5A) would work well, providing a comfortable margin of safety.
Common Wire Gauges and Their Ampacity
| Wire Gauge (AWG) | Ampacity (Amps) |
| 24 | 2.1 |
| 22 | 3.5 |
| 20 | 5.0 |
| 18 | 7.0 |
| 16 | 10.0 |
Key Tip: When selecting LED Strip Light Cables, always round up to a cable with higher ampacity than your calculated current. This buffer ensures reliability and accommodates potential future upgrades.
Step-by-Step Guide to Matching Cables to LED Strip Lights
Matching the right LED Strip Light Cables to your installation is a two-step process: verifying the voltage and calculating the current draw. Here’s how to do it:
Step 1: Verify the Voltage
- Identify the operating voltage of your LED strip (typically 12V or 24V).
- Choose LED Strip Light Cables with a voltage rating that meets or exceeds this requirement.
Step 2: Calculate the Current Draw
- Determine the power consumption of your LED strip (in watts), usually listed on the product label or datasheet.
- Use the formula Current = Power ÷ Voltage to find the current draw.
- Select a cable with an ampacity greater than this value, referencing a wire gauge chart like the one above.
Let’s apply this process with two practical examples:
Example 1: 5-Meter 12V LED Strip
- Power consumption: 24W
- Voltage: 12V
- Current = 24W ÷ 12V = 2A
- Suitable cable: 22 AWG (rated for 3.5A)
Example 2: 10-Meter 24V LED Strip
- Power consumption: 48W
- Voltage: 24V
- Current = 48W ÷ 24V = 2A
- Suitable cable: 22 AWG (rated for 3.5A)
In both cases, a 22 AWG cable suffices, but for added safety or longer runs, you might opt for a 20 AWG cable instead.
Key Tip: When using an LED cable extension or LED strip extension wire, ensure it matches or exceeds the voltage and ampacity of your primary cable to maintain consistent performance across your setup.
Additional Considerations for LED Strip Light Cables
Matching voltage and capacity is the foundation, but several other factors can affect your cable choice and the success of your LED strip installation.
Cable Length and Voltage Drop
Longer cable runs can lead to voltage drops, where the voltage decreases over distance, potentially dimming your lights or reducing efficiency. For a 12V LED strip extended over 10 meters, a 22 AWG cable might suffice for the current, but the voltage drop could become noticeable. To minimize this, opt for thicker LED Strip Light Cables (e.g., 18 AWG) for longer distances.
Here’s a rough guideline:
- Up to 5 meters: 22 AWG or 20 AWG
- 5–10 meters: 20 AWG or 18 AWG
- Over 10 meters: 18 AWG or 16 AWG
Environmental Factors
If your LED strip lights are installed outdoors or in humid areas, the insulation of your LED Strip Light Cables matters. Look for cables with durable, weather-resistant insulation like PVC or silicone to protect against moisture, heat, or cold. This is especially important for LED cable extensions exposed to the elements.
Compatibility with Connectors and Power Supplies
Your LED strip extension wire must be compatible with the connectors and power supply in your setup. Mismatched connectors can lead to loose connections, power loss, or even short circuits. Double-check that the wire gauge and terminal types align with your LED strip’s requirements.
Key Tip: For setups with multiple LED cable extensions, calculate the total current draw across all segments and ensure each cable can handle the cumulative load.
Practical Tips for Using LED Cable Extensions and Strip Extension Wires
When extending your LED strip lights, whether to cover a larger area or navigate corners, LED cable extensions and LED strip extension wires become invaluable. Here’s how to use them effectively:
- Match Specifications: Ensure the extension cables have the same or higher voltage and ampacity ratings as your main LED Strip Light Cables.
- Secure Connections: Use reliable connectors or soldering to avoid power interruptions.
- Test Before Finalizing: After adding an LED strip extension wire, test the entire setup to confirm consistent brightness and no overheating.
For example, if you’re extending a 12V, 2A LED strip by 5 meters, a 20 AWG LED cable extension rated for 5A would maintain performance without significant voltage drop.
Why Getting It Right Matters
Choosing the correct LED Strip Light Cables isn’t just about functionality—it’s about safety and longevity. Cables that can’t handle the voltage or current demands of your LED strips can overheat, leading to melted insulation, fire hazards, or fried electronics. On the flip side, properly matched cables ensure your lights shine brightly and reliably for years.
Google Featured Snippet Highlight: “To match LED Strip Light Cables, verify the strip’s voltage (e.g., 12V or 24V) and calculate the current draw using Current = Power ÷ Voltage. Select a cable with a voltage rating at least equal to the strip’s and an ampacity exceeding the current, like 22 AWG for 2A.”
Conclusion
Selecting the right LED Strip Light Cables for your LED strip lights is a straightforward but essential process. By verifying the voltage, calculating the current draw, and considering factors like cable length, environmental conditions, and compatibility, you can create a safe, efficient, and visually stunning installation. Whether you’re adding an LED cable extension or incorporating an LED strip extension wire, always prioritize specifications and quality. When in doubt, consult a professional electrician to ensure your setup meets all safety standards.
